PowerMap360 Legends & Glossary

Glossary

Marker: point locating a single site on the map

Cluster: aggregation of several markers sharing the same geographic area

Point A and Point B: endpoints of a communication link

Link: connection between a Point A and a Point B

Legends

Marker locating an “Open” site within the selected perimeter
Marker locating a site “Under construction” within the selected perimeter
Marker locating a “Closed” site within the selected perimeter
Marker locating an “Open” site outside the selected perimeter. This is a site that holds the Point B endpoint of a link.
Marker locating a site “Under construction” outside the selected perimeter. This is a site that holds the Point B endpoint of a link.
Marker locating a “Closed” site outside the selected perimeter. This is a site that holds the Point B endpoint of a link.
Marker locating 2 different sites with exactly the same geolocation
Marker locating 2 different sites with exactly the same geolocation, and outside the perimeter

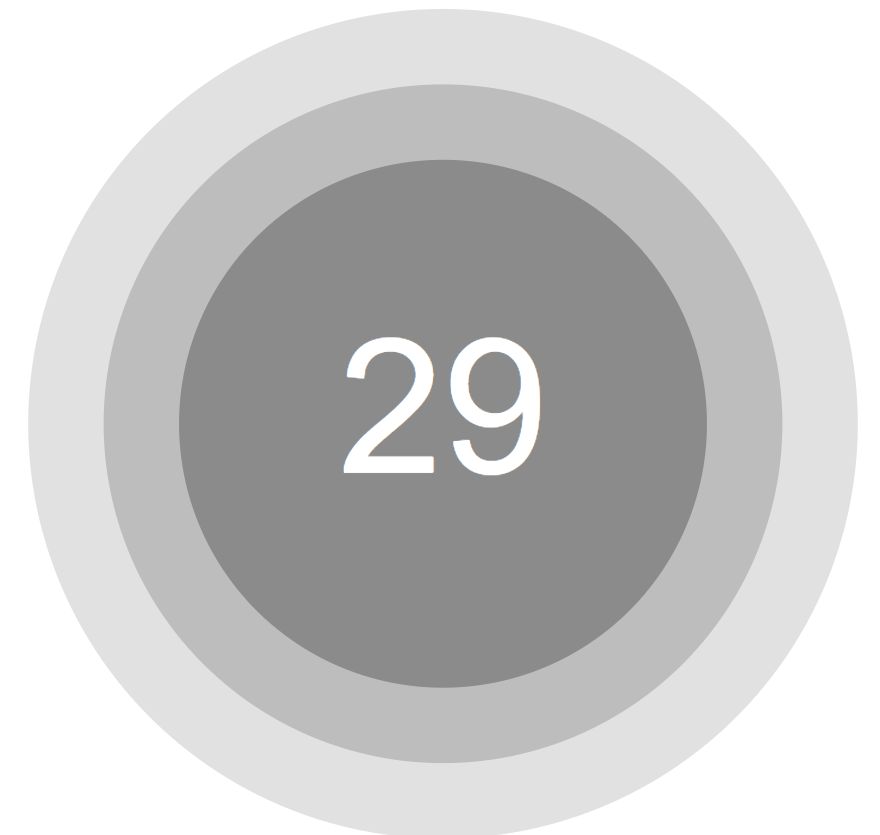

Cluster of 29 markers
Link with active status: 100% of the lines in the link are active.
Link with partially active status: at least one line in the link is inactive and at least one line is active.
Link with inactive status: 100% of the lines in the link are inactive.
