1 — Overview
From the mytem360 inventory management, three management actions related to eSIM are directly available in the detail view (row detail) of a device in the fleet:
Switch to eSIM — convert a physical SIM into an eSIM.
This action is accessible from the Order section of the row detail (for Lines 1, 2, and 3).
- Replace the eSIM — replace a defective existing eSIM with a new one
Generate an eSIM QR code — request generation of the activation QR code
These actions are accessible from the general section (for SIMs 1, 2, and 3) of the detail view in the inventory dashboard.
| ℹ️ These actions are only visible if they are enabled in your authorized actions profile (Account Management > mytem360 Profiles). If you do not see them, please contact your administrator. |
2 — Switching from a Physical SIM to an eSIM
Display Conditions for the Action
The action “Switch to eSIM” is visible in the detail view (row detail) of a Line (slot 1, 2, or 3) only if:
- A physical SIM (non-eSIM) is associated with the line's slot
- Your catalog contains at least one order pack with an eSIM whose provider matches that of the line
- The action is enabled in your authorized actions profile
Procedure
- In the inventory management module table, search for the line whose physical SIM card needs to be switched to an eSIM
- Open its detail view by clicking in an empty area.
- In the Order section, click on “Switch to eSIM”.

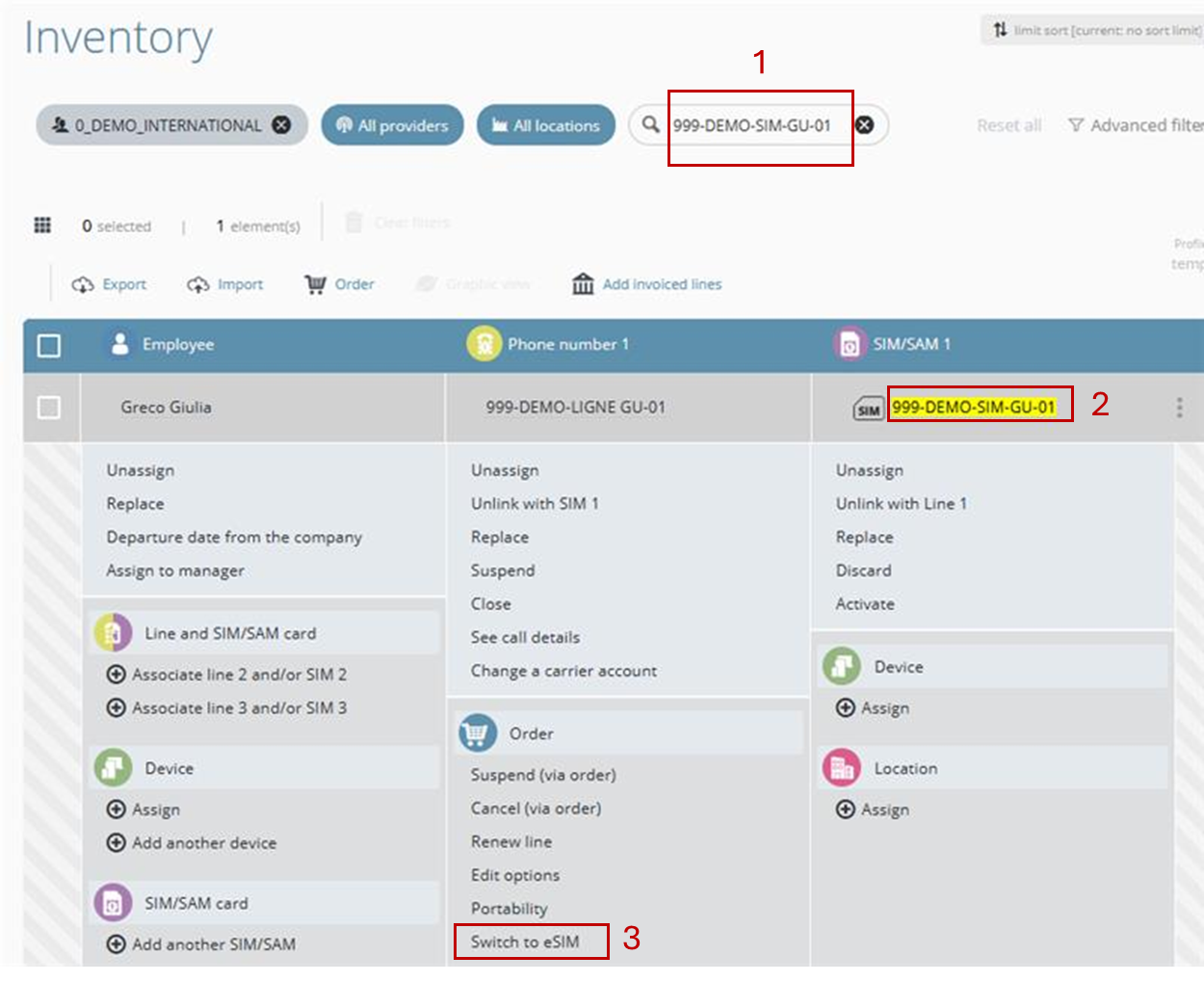

“Switch to eSIM” action in the line’s detail view
- You will be redirected to the order module, filtered to compatible eSIMs (same provider, SIM Cards section only):
| Catalog situation | Behavior |
|---|---|
| Multiple eSIMs available | Order page displayed — select the eSIM of your choice and add it to the cart (quantity locked at 1) |
| Only one eSIM available | The order page is not displayed; you will go directly to the first order entry screen. |

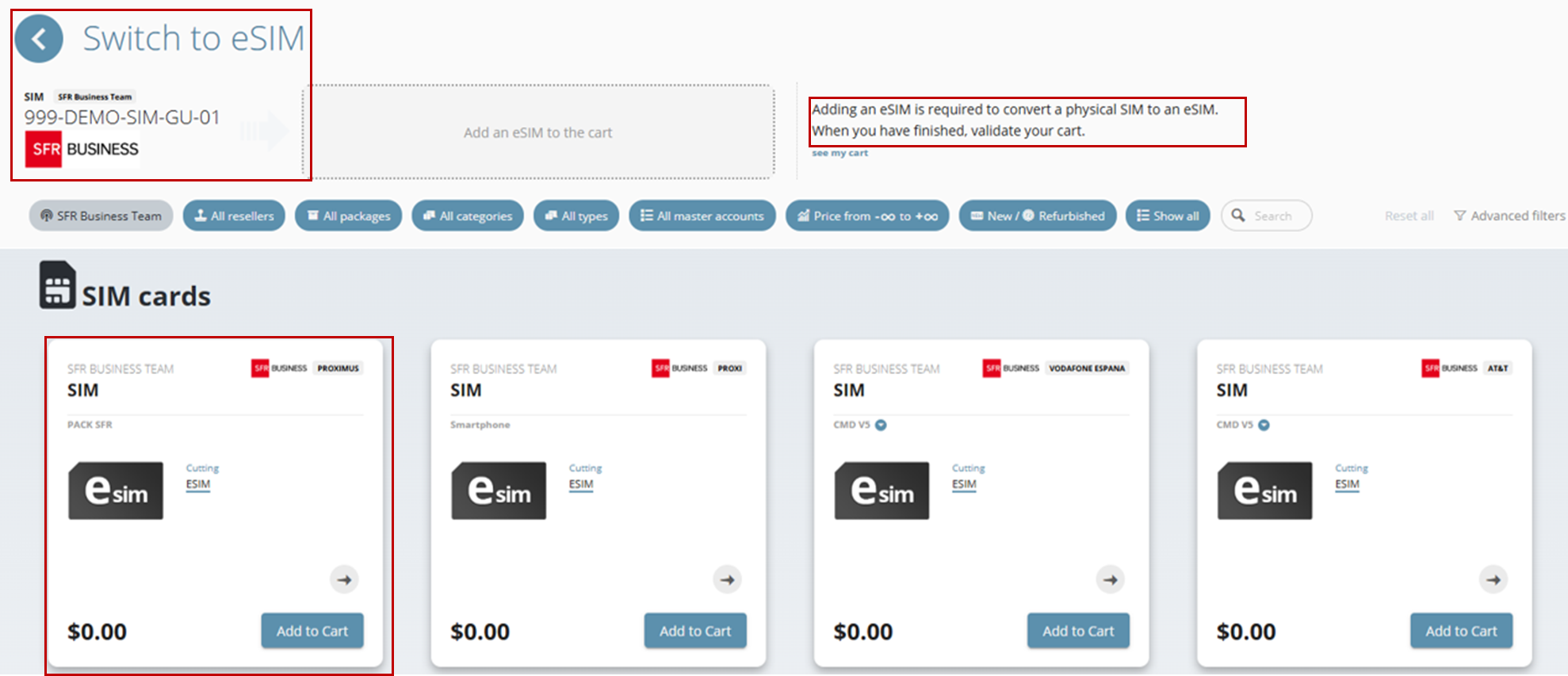

Shop page filtered — SIM Cards section only, eSIMs from the line’s provider
- Complete the order process until the order is confirmed
Automatic Inventory Update
| Order Status | What Happens in the Inventory |
|---|---|
| Provider processing in progress | Temporary eSIM created in the management group and associated with the employee if the physical SIM was. ICCID entry available. |
| Processed by the provider | The eSIM replaces the physical SIM on the line. The physical SIM is automatically discarded and removed from all management groups. |
| Cancelled | The temporary eSIM is deleted. The original physical SIM remains active with its associations. |
View in the inventory after receipt acknowledgment, when the order status changes to “Provider processing in progress”:
- The original physical SIM is still in the fleet associated with the line and user
- A temporary eSIM has been created and associated with the user
Inventory grid — temporary eSIM (SIM-Temp) created and visible
View in the inventory after processing by the provider (Order Status = Pending) — the eSIM is in place with its reference:

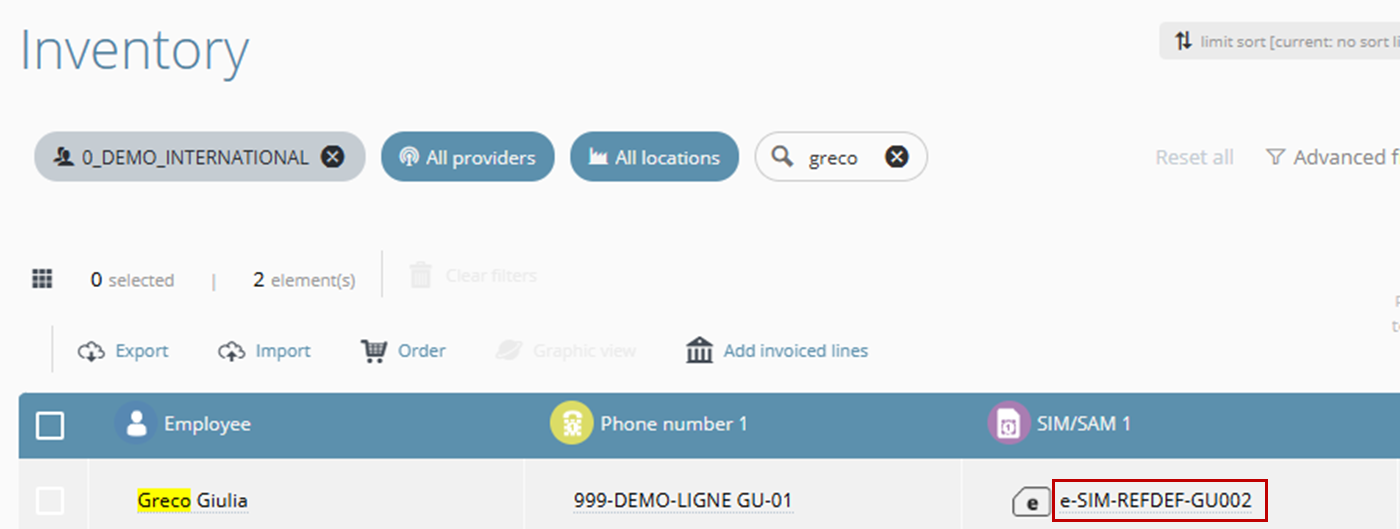

Inventory grid — active eSIM on the phone number, physical SIM replaced
| ⚠️ The disposal of the physical SIM is automatic and irreversible once the status changes to “Processed by the supplier.” It is excluded from all management groups. |
3 — Replacing Your eSIM
Display Conditions for the Action
The action “Replace the eSIM” is visible in the detail view (row detail) of a Line (slot 1, 2, or 3) only if:
- An eSIM (and not a physical SIM) is associated with the line's slot
- Your catalog contains at least one order pack with an eSIM whose provider matches that of the line
- The action is enabled in your authorized actions profile
| ℹ️ The actions “Switch to eSIM” and “Replace the eSIM” are mutually exclusive on the same slot: only one is displayed at a time depending on the type of SIM in place. |
Procedure
- In the fleet management module table, search for the line whose SIM card needs to be replaced
- Open its detail view by clicking in an empty area
- In the Order section, click on “Replace the eSIM”.

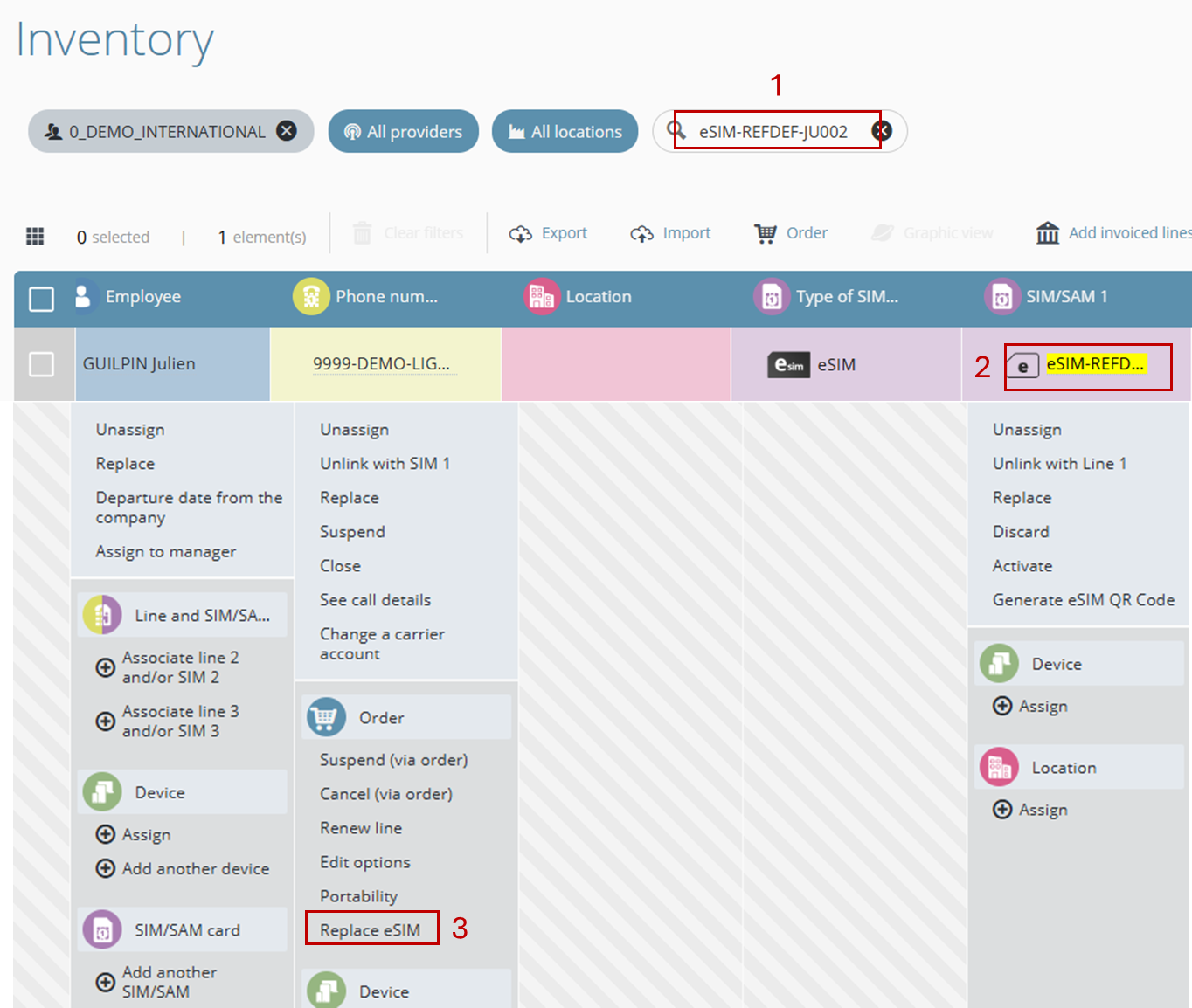

“Replace the eSIM” action in the line’s detail view
- Follow the same order process as for “Switch to eSIM” (see above). The old eSIM is automatically discarded at the “Processed by the vendor” status.
4 — Generating an eSIM QR Code
Display Conditions for the Action
The action “Generate an eSIM QR code” is visible in the detail view of a SIM slot (SIM 1, 2, or 3) only if:
- The SIM in the concerned slot is of type eSIM
- At least one distributor contact associated with the SIM’s distributor has the role “eSIM QR Code”
- The action is enabled in your authorized actions profile
Procedure
- In the fleet management module table, search for the concerned eSIM card
- Open its detail view by clicking in an empty area
- In the general section, click on “Generate an eSIM QR code”.

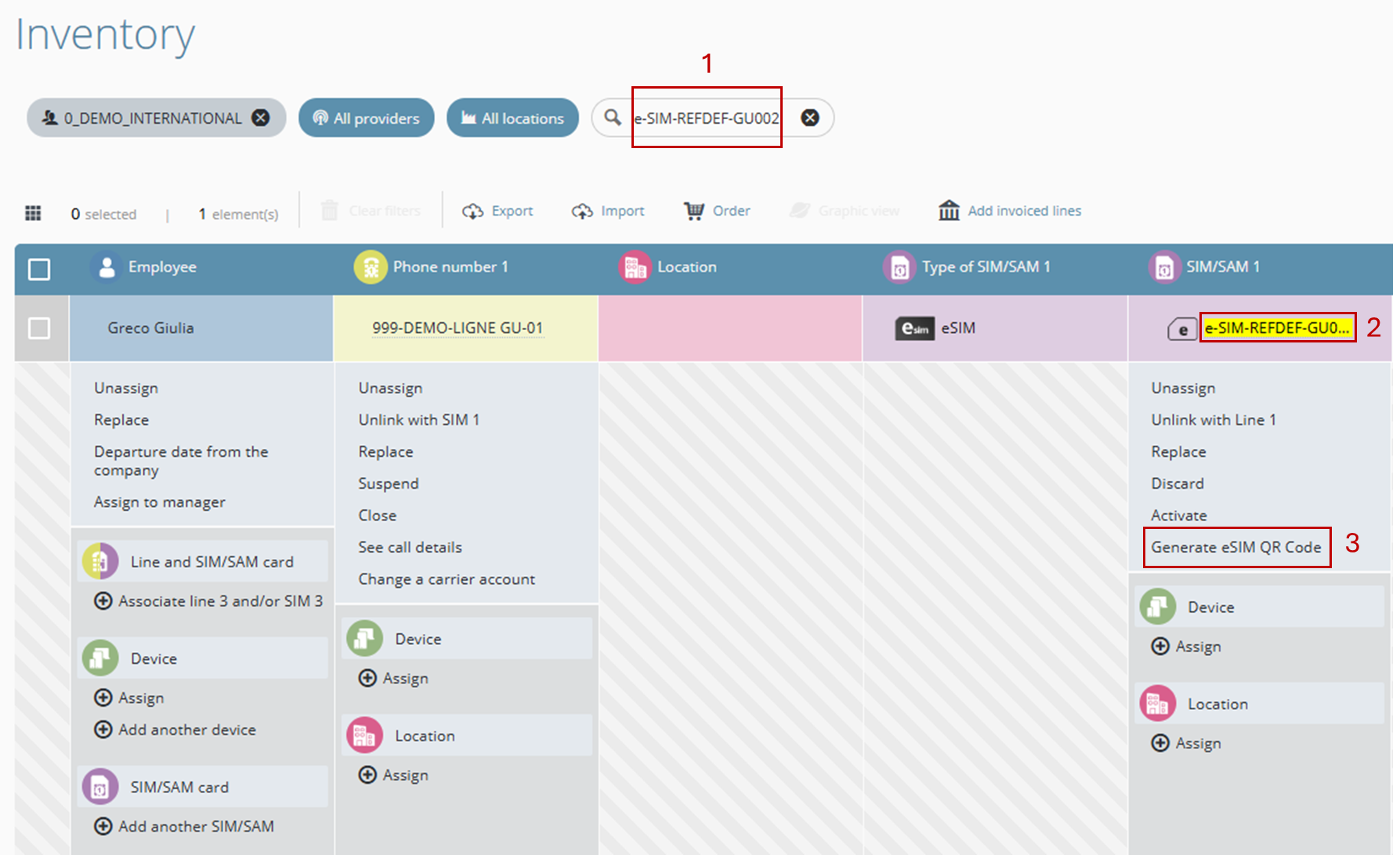

“Generate an eSIM QR code” action in the SIM detail view
- A window opens showing the email that will be sent to the distributor contact responsible for generating the QR code:

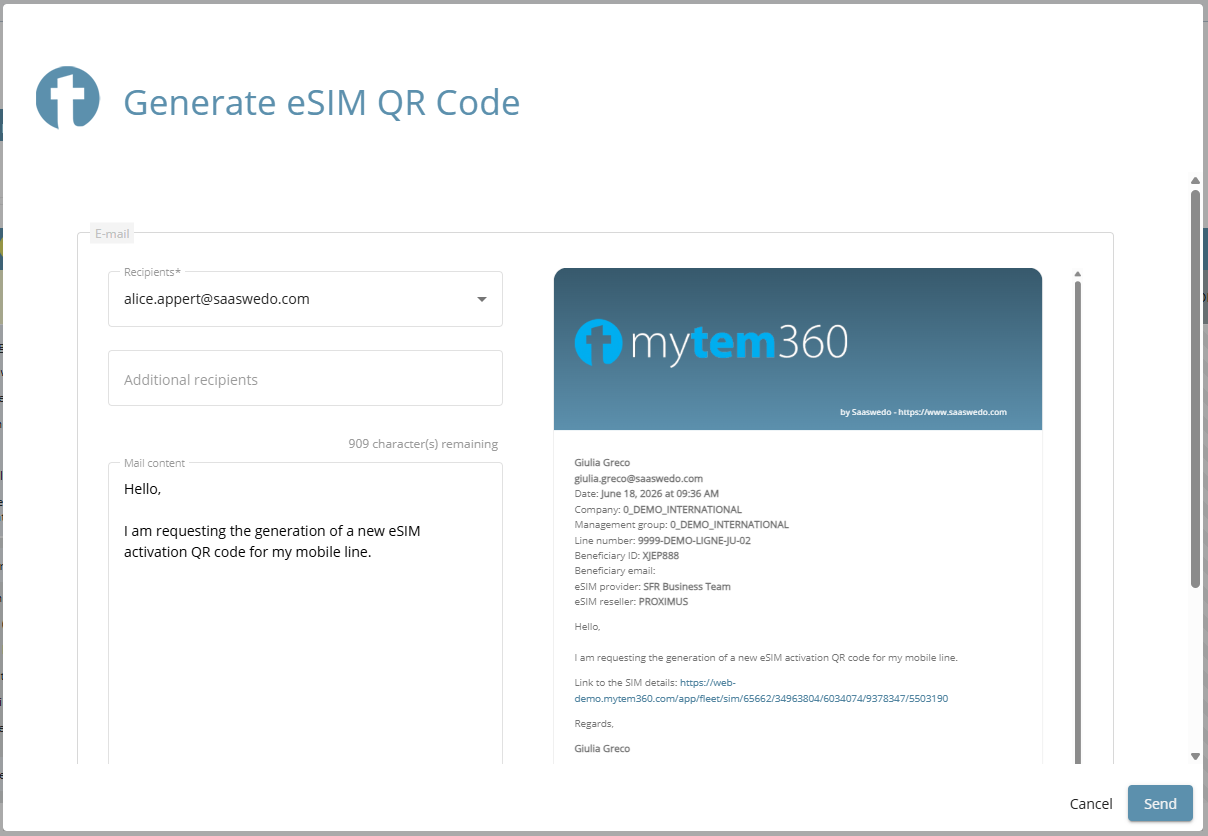

“Generate an eSIM QR code” modal — pre-filled recipient, editable message
| Field | Content |
|---|---|
| Recipients | Pre-filled with the distributor contact(s) having the role “eSIM QR Code.” Selectable if multiple eligible contacts exist. |
| Additional recipients | Free entry of an email address in CC (optional, format validated). |
| Mail content | Pre-filled with the request message. Editable before sending. |
- Modify the message if necessary, then click Send. A confirmation message appears: “The request has been made.”
5 — The QR Code Section in the SIM Detail View
The detailed view of an eSIM card includes a “QR Code” section accessible from the navigation menu of the detail view.
Empty State — No QR Code Imported
When no QR code has yet been imported by the distributor contact, the section displays an upload button. Accepted formats: PNG, JPG/JPEG, SVG, TIFF, PDF.

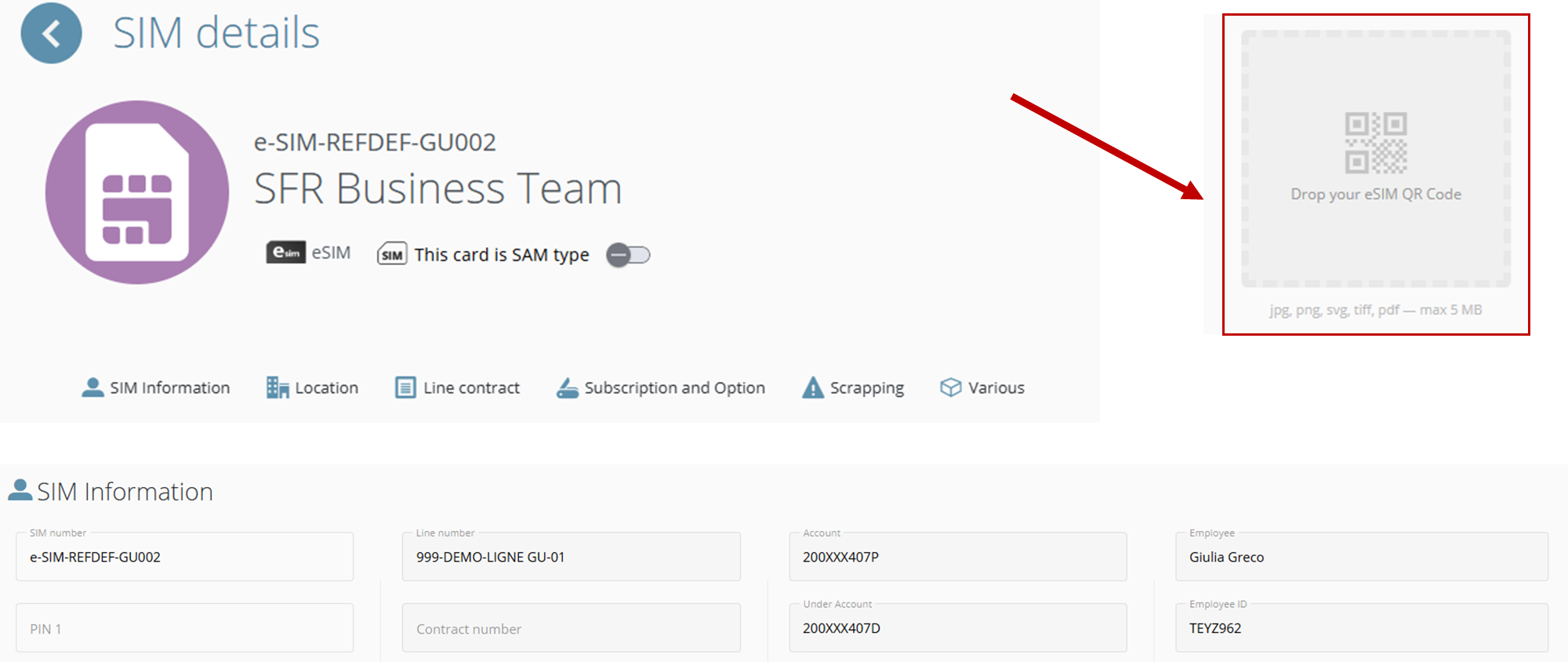

SIM detail — QR Code section empty, awaiting import by the distributor
Filled State — QR Code Available
Once imported by the distributor contact, the QR code is displayed in a ratio that allows it to be scanned directly from a mobile phone.
QR code displayed and scannable from the SIM detail view
QR Code Availability Notification
After import, a notification window automatically opens to inform the manager (pre-filled address):

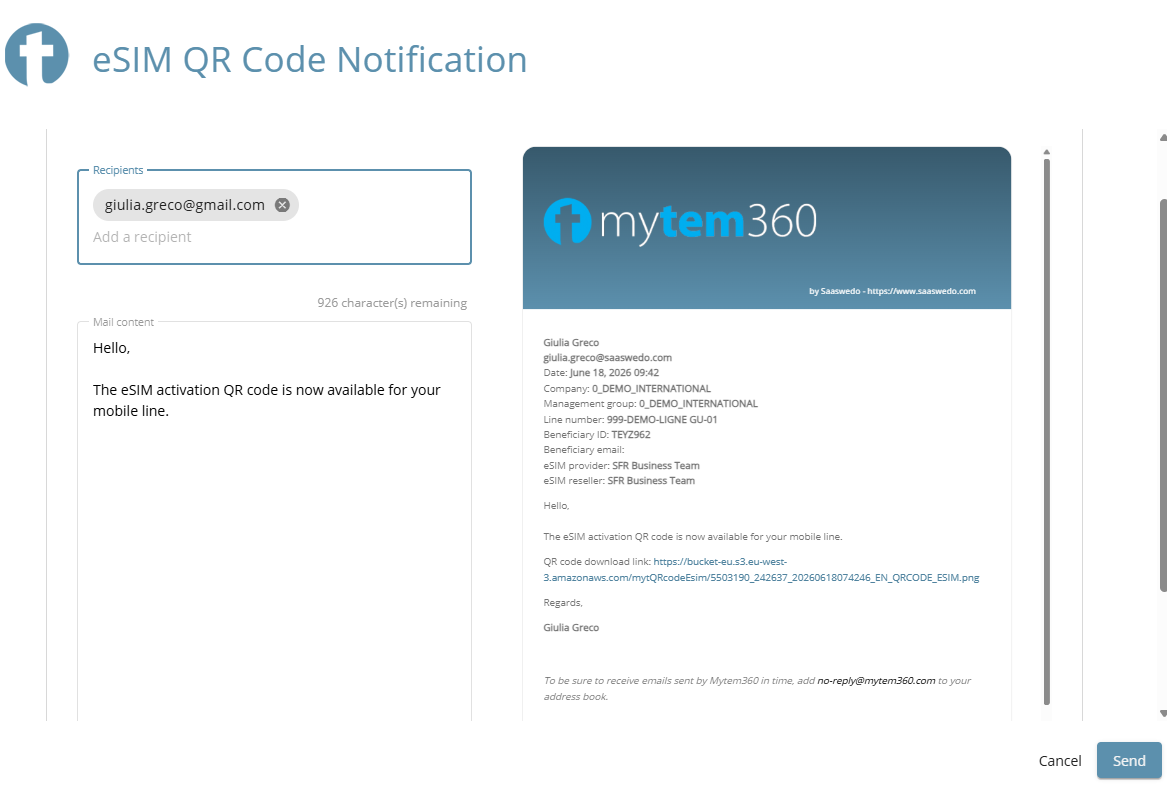

“eSIM QR Code Notification” modal — pre-filled address
The manager then receives an email with a direct download link.
6 — Administrator Settings
Enable eSIM Actions in Profiles
The three eSIM actions must be enabled in Account Administration > Manage your Profiles > Authorized Actions Profiles for inventory management:
| Action | Targets | Default Profile | Existing Custom Profile |
|---|---|---|---|
| Switch to eSIM | Line 1, 2, 3 | Enabled | Disabled — manual activation required |
| Replace the eSIM | Line 1, 2, 3 | Enabled | Disabled — manual activation required |
| Generate an eSIM QR code | SIM 1, 2, 3 | Enabled | Disabled — manual activation required |
Configure the QR Code Recipient Contact
For the action “Generate an eSIM QR code” to be available, at least one distributor contact must have the role “eSIM QR Code”:
- Account Administration > Configure your resellers > Detail view > Provider Contacts section > Create or edit a contact > Step 2: select the role “eSIM QR Code”
